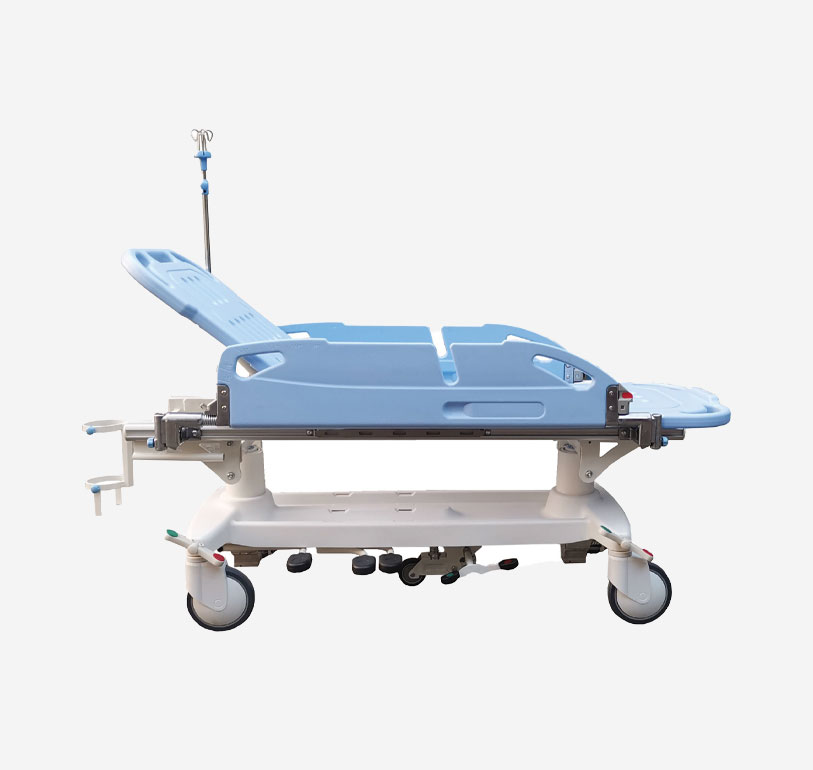

- Specifications: Full length 1970mm, width 690mm, height lifting 655—985mm, back elevation 0—80°, front and back tilt angle 0—17°,
- Back lifting system: The back lifting is controlled by a silent gas spring;
- The height adjustment of the whole bed adopts two independent hydraulic pumps imported from the United States and hydraulic foot control.
- Bed board: one-time blow molding made of new antibacterial PP material;
- Bed frame: The main frame is made of high-quality cold-rolled steel / the beam part and the guardrail bracket are made of high-strength aluminum profiles and aluminum die-casting parts;
- Guardrail board: One-time blow molding of antibacterial new PP material on both sides of the guardrail board, which can be fixed horizontally, increase the width of the bed, so that the
infusion person’s arm has a comfortable place, and can be translated and converted with the hospital bed, which is more effective Solve the transfer of patients across the bed. The guardrail is equipped with a safety lock for locking to prevent misoperation and improve the safety of operation;
- The guardrail panel is equipped with an angle display, which is convenient for knowing the rising angle of the back during nursing; there are grooves in the middle of the guardrail panels on
both sides to prevent the catheter from sliding down and facilitate the drainage of the infusion;
- Casters: 200mm diameter single-sided silent luxury casters, the four corners of the transfer vehicle are equipped with brake control systems, one foot brake, four wheels brake at the same
time;
- Independent central fifth wheel system: control pedals are installed on both sides of the cart, and the central fifth wheel can travel freely when retracted; when used, it is in a “straight” state, which overcomes the inertial effect during transportation Strength, effectively control the forward direction, make the transportation process safer;
- Under the bed, there is a disposable injection-molded dust-proof cover. The left and right sides of the cover are divided into two parts with different depths. Two large-capacity oxygen
cylinders can be placed.
- Equipped with an infusion stand storage jack to securely store the infusion stand;
- There is a hanging oxygen cylinder rack under the head of the bed, which can hold an oxygen cylinder with a capacity of 500 liters (diameter 105-115mm);
- Equipped with a transfer mattress: the fabric is waterproof and easy to clean, the four corners are equipped with zippers, the outer fabric can be washed; built-in high-density sponge.
